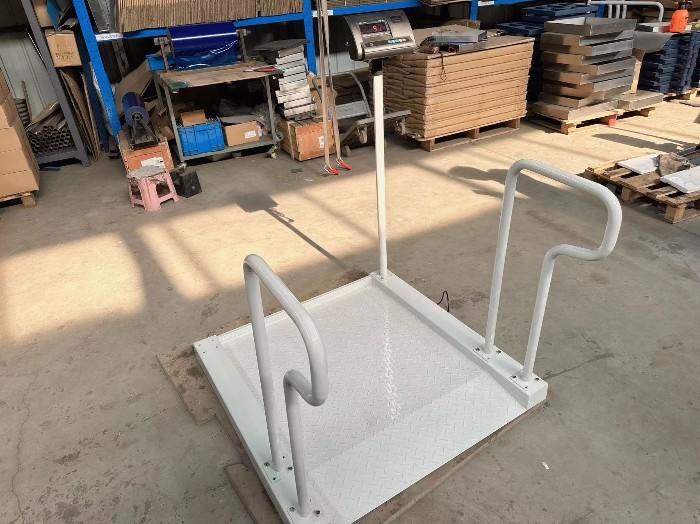

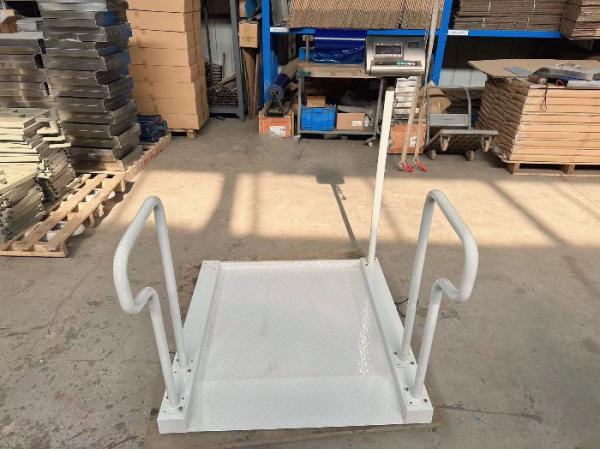

Portable hospital dedicated Wheelchair Electronic Platform Weighing Scale 300kg 500kg
Specifications:
| Model | Size(m) | Capacity(t) |
| 0808 | 0.8x0.8 | 100~500kg |
| 1010 | 1.0X1.0 | 100~500kg |
| 1212 | 1.2X1.2 | 100~500kg |
| |
| | | |
1. Weighing accuracy grade: Ⅲ
2. Operating environment humidity: ≤85%RH
3. Operating environment temperature: 0~40°C
4. Power supply: 220V AC/50Hz
5. Load cell sensitivity: 2.0±0.002mv/v
6. Qty of load cell: 4pcs
7. Power supply of load cell: 5~12V
8. Max. safety overload: 120%
9. Ultimate overload: 150%
Description:
1. Single deck with 4-6mm checker plate or smooth plate, with handle and ramp.
2. Heavy duty Mild steel structure
3. Anti corrosion and anti rust coat painting
4. U shape beam design
Platform Weighing Scale components:
1.High precision Load Cell
2.Inteligent indicator
3.Junction box
The advantage of Platform Weighing Scale:
1.Limit column spacing prevents shifting.
2.Choose slope for weighting the loaded car.
Applications:
Wheelchair scales, with a new design of steel carrier, equipped with four high-precision shear beam load cell and intelligent weighing indicator weighing system components . The system has high accuracy measurement Fast , stable and reliable , ideal for hospital dialysis weighing apparatus workplace.
Competitive Advantage:
SKYERSCALE has established mature selling network and distributors all over the country. And the products are exported to dozens of countries all over the world. The high quality products and efficient service have won the praise from customers at home and abroad.
